Timber Nogging Bracket

The Timber Nogging Bracket is a simple and easy way to quickly install timber noggings in steel stud walls. It provides contractors with the flexibility to choose the ideal size needed for installing heavy-duty timber noggings in stud wall structures, saving time and improving safety by reducing the need pick offcuts from scrap materials.

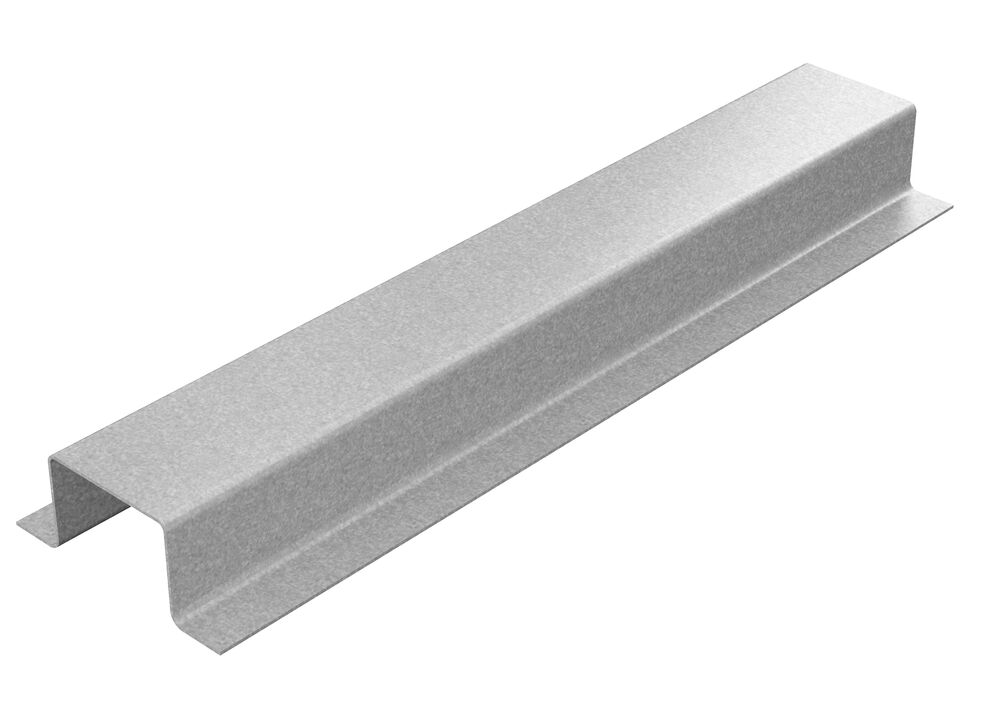

The Siniat Timber Nogging Bracket is made from galvanised steel and supplied in 2400mm lengths in the same 0.75mm thickness as the Siniat Nogging Track.

Further information

Applications:

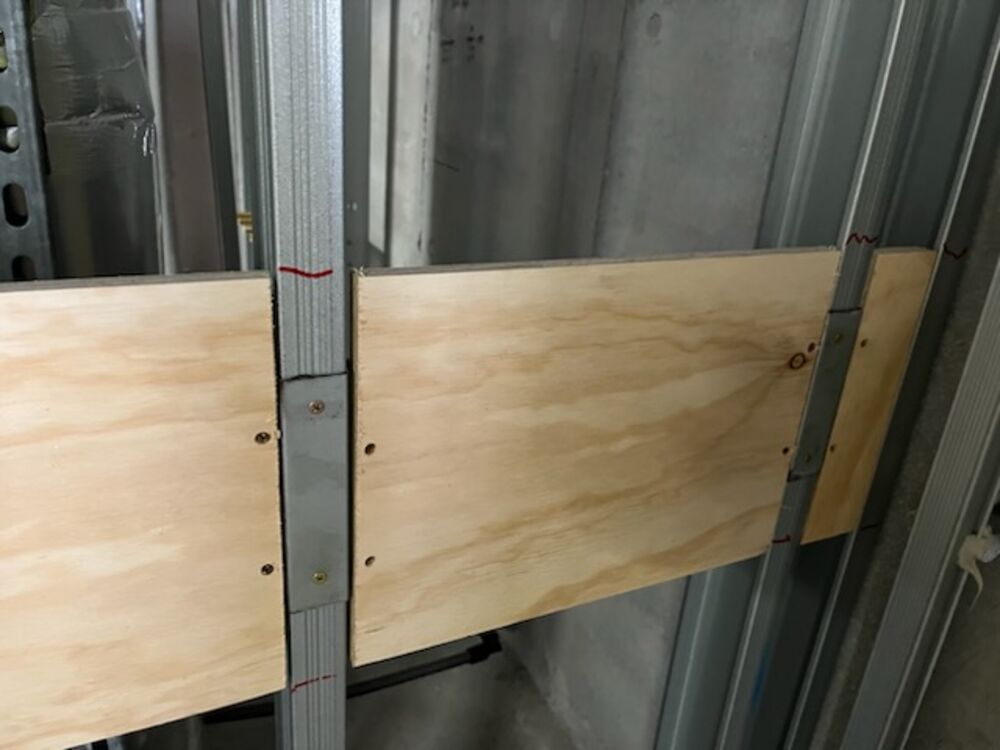

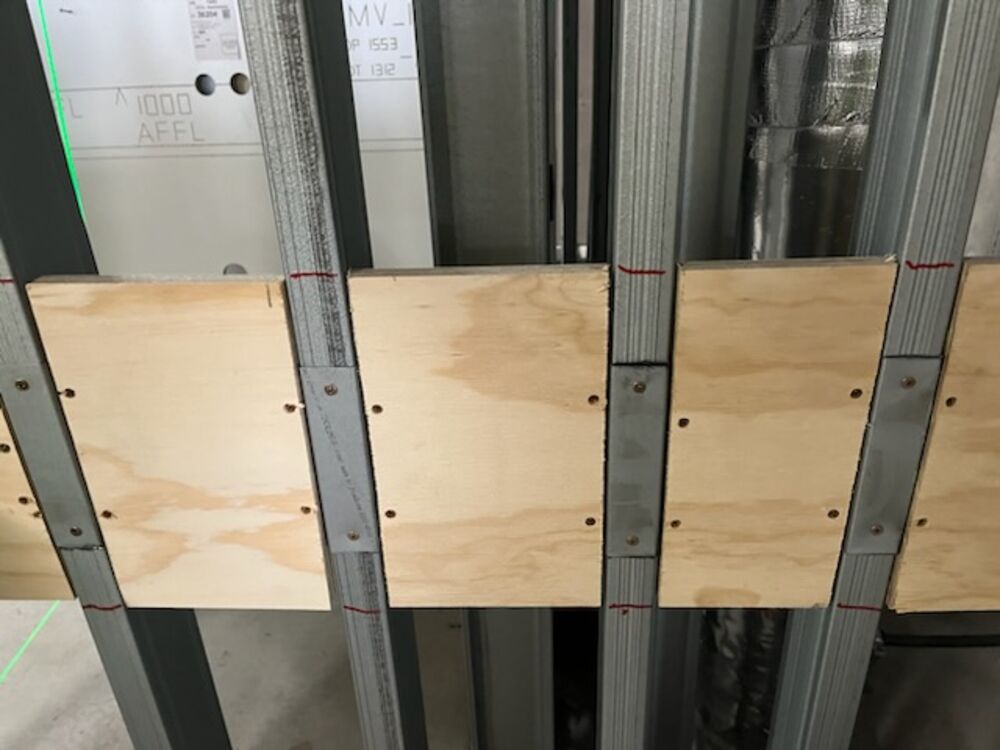

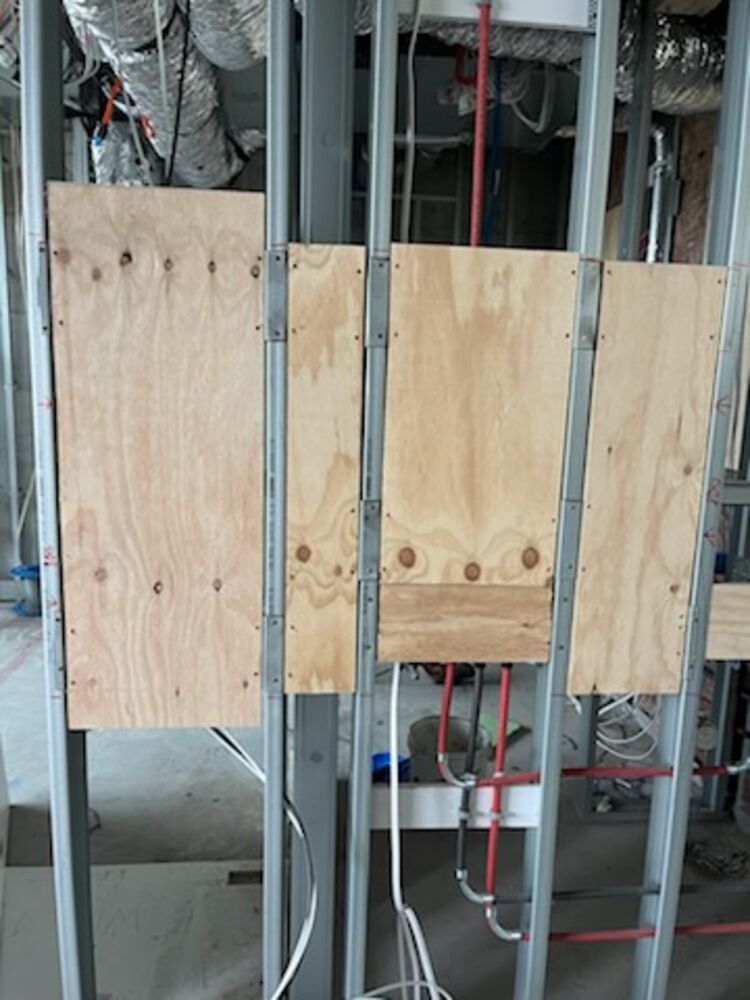

  • Can be used with 12mm to 18mm plywood when wide timber noggings are required behind the plasterboard to support face fixed items (towel rails, handrails, cupboards etc).

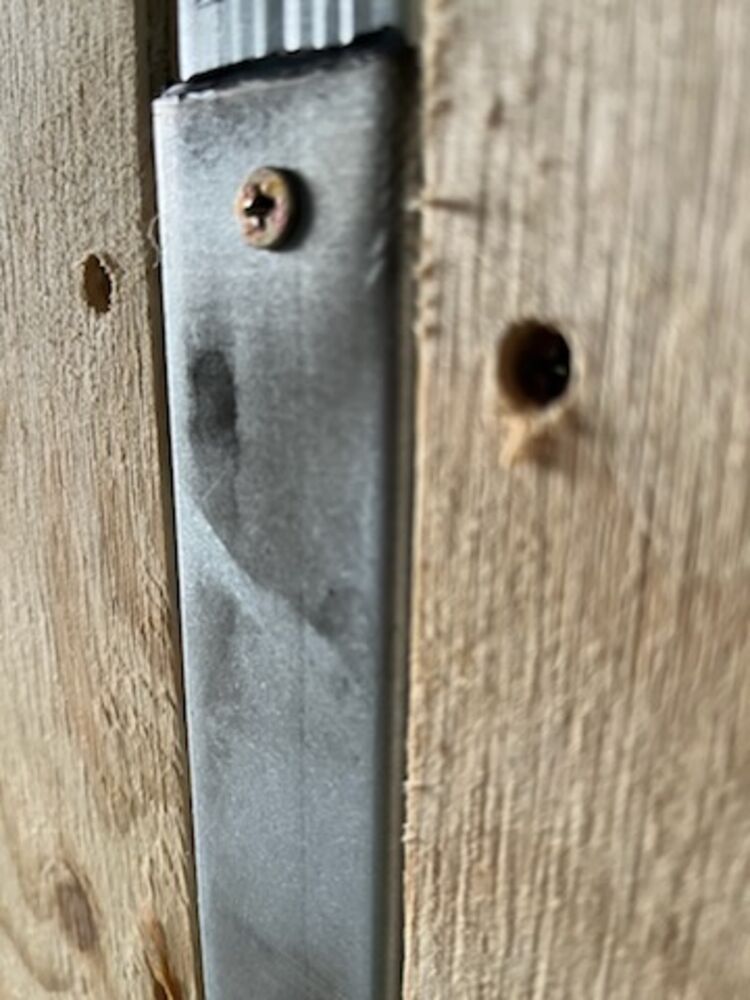

  • Face-fix the bracket to the flange of the stud and screw-fix the nogging to the bracket from behind.

Benefits:

  • Supplied in 2400mm lengths, enabling contractors to use any width of timber nogging
  • Can be secured properly by a purpose cut bracket
  • Saves time and labour on site
  • Length can be tailored according to specific application needs
  • Cost effective solution
  • Can be supplied under the Opt2Act carbon neutral program
