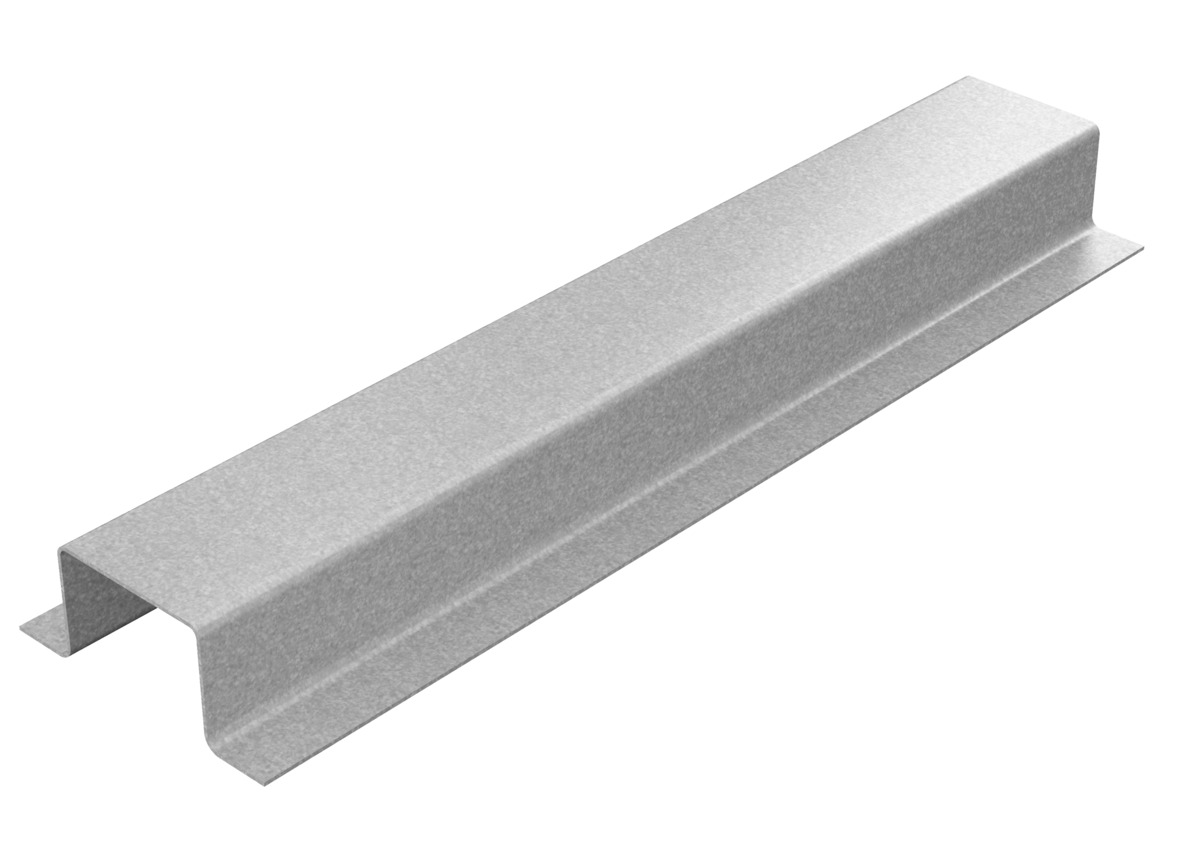

Siniat Top Hats are mainly used in façade systems and soffits to support the wall and ceiling cladding.
The Siniat Metal Facade System provides an attactive express joint system for 9mm CFC boards.
The system has been CSIRO tested with various configurations and plasterboard types. The system was developed and designed in collaboration for ease of installation.
Download the Siniat technical manual Blueprint for more information and construction details.
Applications:
Benefits:
| SAP Material | Length | Width | Weight | |
|---|---|---|---|---|

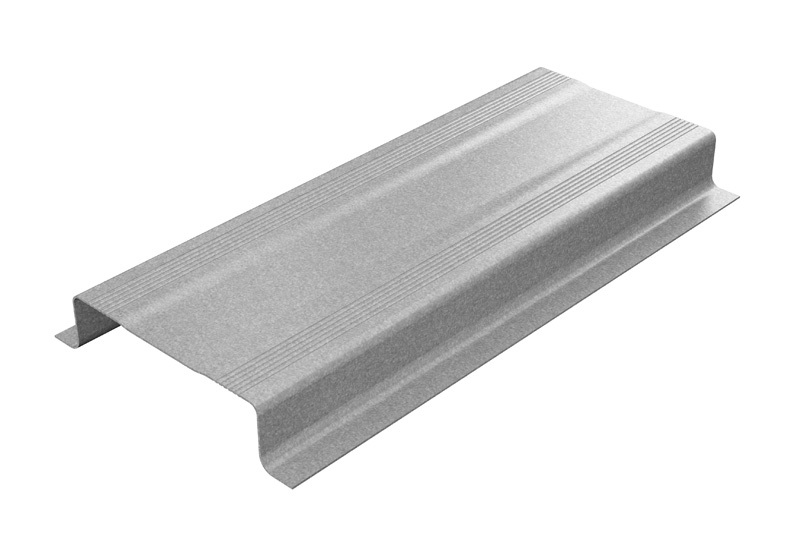

| Façade Top Hat 120/35/1.15 6000 (FSTH120-115-60) | 298172 | 6000 mm | 120 mm | 12.614 kg |
| Façade Top Hat 120/35/1.15 7200 (FSTH120-115-72) | 298173 | 7200 mm | 120 mm | 15.137 kg |
| Top Hat 38/19/0.70 2400 | 298288 | 2400 mm | 38 mm | 1.631 kg |

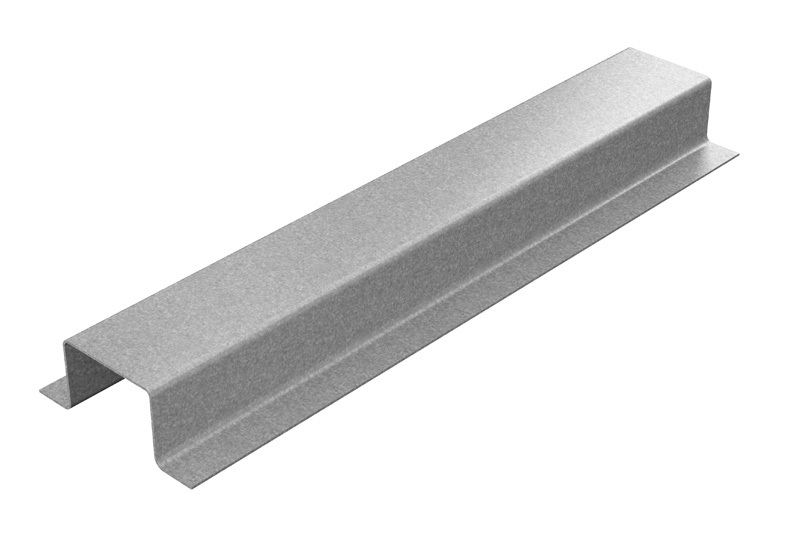

| Top Hat 50/15/0.75 3600 (TH50/15-075-36) | 298289 | 3600 mm | 50 mm | 2.4 kg |
| Top Hat 50/15/1.15 3600 (TH50/15-115-36) | 298290 | 3600 mm | 50 mm | 3.334 kg |
| Top Hat 50/15/1.15 6000 (TH50/15-115-60) | 298291 | 6000 mm | 50 mm | 5.557 kg |
| Top Hat 50/25/0.75 3600 (TH50/25-075-36) | 298292 | 3600 mm | 50 mm | 2.958 kg |
| Top Hat 50/25/1.15 3600 (TH50/25-115-36) | 298293 | 3600 mm | 50 mm | 4.439 kg |
| Top Hat 50/25/1.15 6000 (TH50/25-115-60) | 298294 | 6000 mm | 50 mm | 7.399 kg |
| Top Hat 50/35/0.75 3600 (TH50/35-075-36) | 298295 | 3600 mm | 50 mm | 3.22 kg |
| Top Hat 50/35/0.75 6000 (TH50/35-075-60) | 298296 | 6000 mm | 50 mm | 5.583 kg |
| Top Hat 50/35/0.75 7200 (TH50/35-075-720) | 298297 | 7200 mm | 50 mm | 6.79 kg |
| Top Hat 50/35/1.15 3600 (TH50/35-115-36) | 298298 | 3600 mm | 50 mm | 4.934 kg |
| Top Hat 50/35/1.15 6000 (TH50/35-115-60) | 298299 | 6000 mm | 50 mm | 8.224 kg |
| Top Hat 50/35/1.15 7200 (TH50/35-115-72) | 298300 | 7200 mm | 50 mm | 9.869 kg |
| Top Hat 50/50/0.75 3600 | 298301 | 3600 mm | 50 mm | 4.143 kg |
| Top Hat 50/50/1.15 3600 | 298302 | 3600 mm | 50 mm | 6.028 kg |
| Top Hat 50/50/1.15 6000 (TH50/50-115-60) | 298436 | 6000 mm | 50 mm | 10.046 kg |
| Top Hat 50/50/1.15 7200 (TH50/50-115-72) | 298304 | 7200 mm | 50 mm | 12.056 kg |

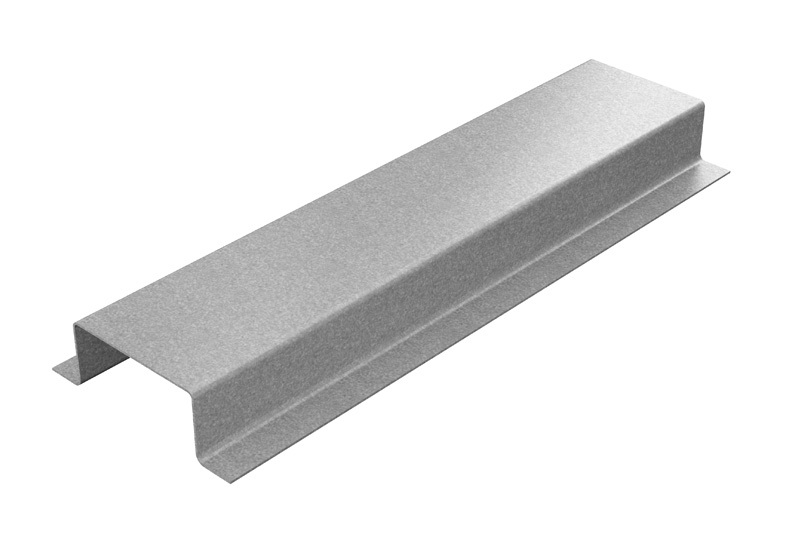

| Top Hat 75/35/1.15 3600 (TH75/35-115-36) | 298305 | 3600 mm | 75 mm | 5.835 kg |
| Top Hat 75/35/1.15 6000 (TH75/35-115-60) | 298306 | 6000 mm | 75 mm | 9.725 kg |
| Top Hat 75/35/1.15 7200 (TH75/35-115-72) | 298307 | 7200 mm | 75 mm | 11.884 kg |
