Acoustic Stud Wall Framing Systems

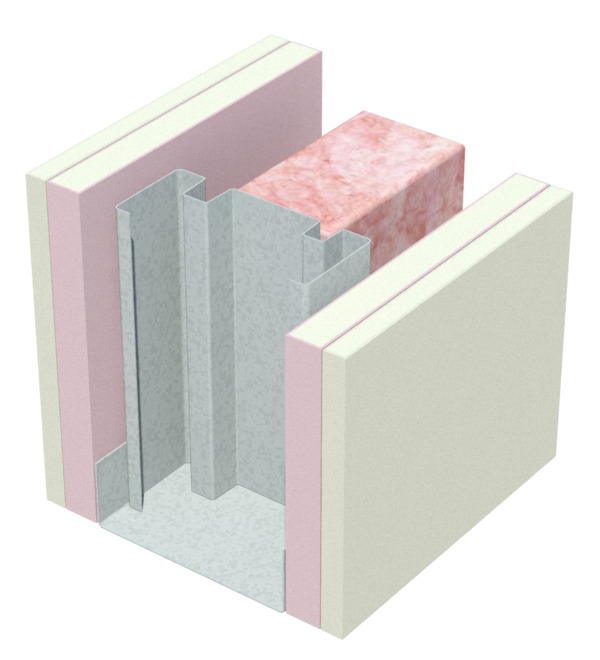

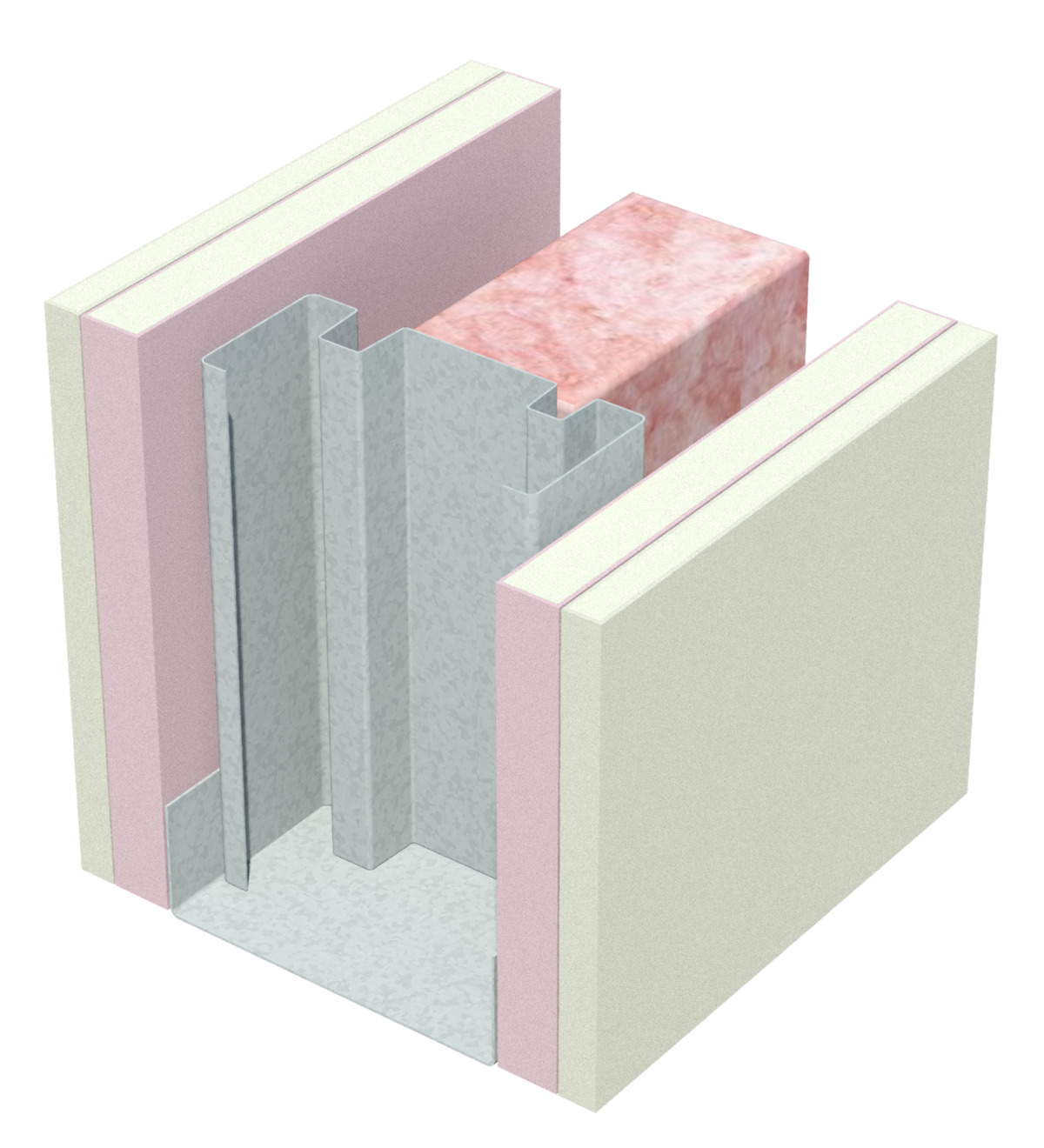

The Siniat Acoustic Stud System is designed for the fixing of Siniat plasterboard to both sides of the stud as opposed to a staggered stud system where plasterboard is fixed to only one side of the stud. The benefit is that it allows for increased wall heights.

Being simpler to install it has reduced construction costs compared to a staggered stud system, providing similar performance while reducing the number of studs required. In comparative tests conducted by the CSIRO, the Rw rating was increased by 5 and the Rw+Ctr improved by the same.

The Acoustic Stud System was tested with various configurations and plasterboard types and results up to Rw60 were achieved.

Download the Siniat technical manual Blueprint for more information and construction details.

Further information

Applications:

  • For the fixing of Siniat plasterboard to both sides of the stud as opposed to a staggered stud system where plasterboard is fixed to only one side of the stud.

Benefits:

  • The performance of a staggered stud wall but with the ease of installation of a standard stud wall
  • A range of Siniat Acoustic Stud wall systems are available to meet a wide range of acoustic performance requirements
  • Part of a complete system from Siniat including plasterboard and compounds
