Siniat Metal Framing Facade System

The Siniat Metal Framing Façade System is typically used for express jointed cladding materials.

Featuring a recessed Siniat 120mm Top Hat which allows for the ideal compression of an EPDM foam tape and a patented Backing Strip, the system has been CSIRO tested with various configurations and plasterboard types.

Other Siniat Top Hat profiles with 75mm and 50mm faces are combined to provide a more traditional facade where the board joints are set and the facade is either painted or rendered.

Siniat Standard Top Hat profiles have a 35mm depth, however Siniat can custom make Top Hat profiles within a range of sizes.

The Siniat Metal Facade System utilises four Siniat Metal products which are used with a 9mm CFC sheet and appropriate sealant:

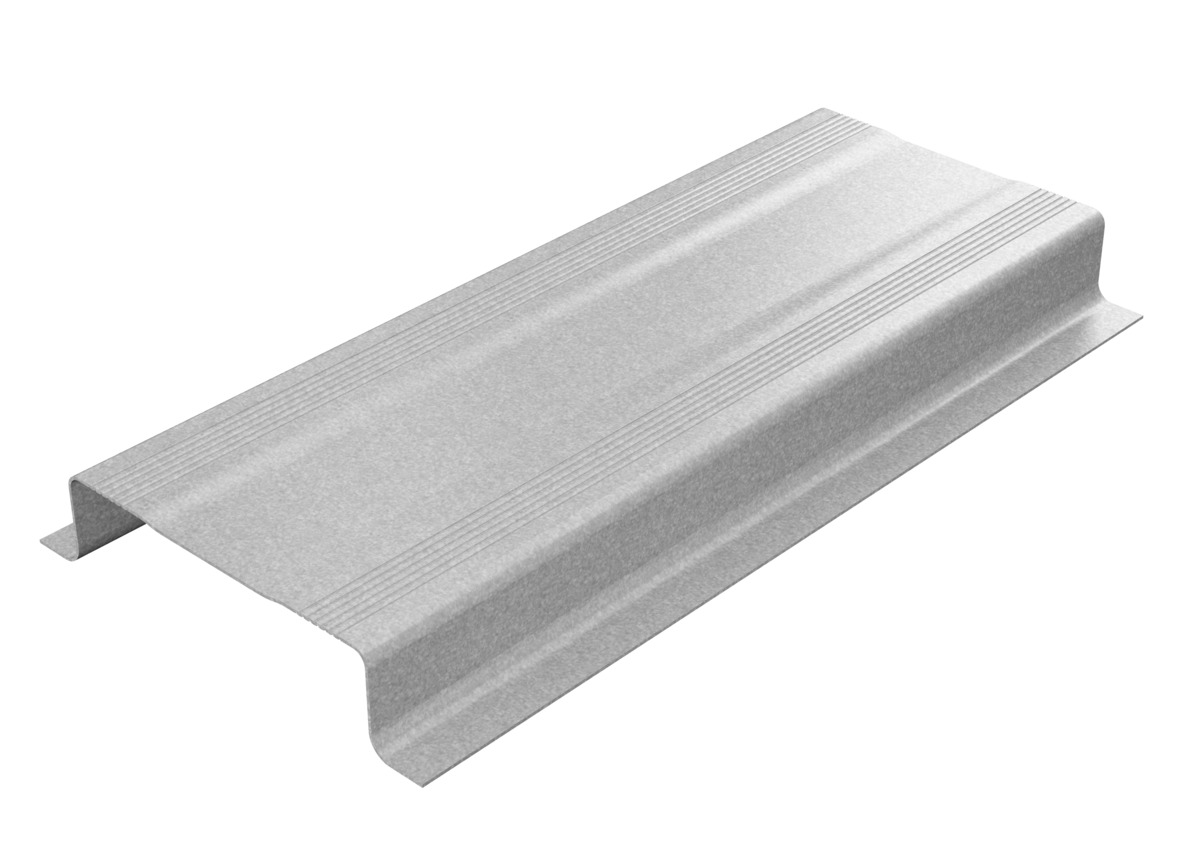

  • Siniat Façade Top Hat 120 has a recessed channel to accommodate the EPDM gasket.

  • Siniat Intermediate Top Hat 115 provides vertical support to the middle of the sheeting where an express joint is not required.

  • A patented Backing Strip that provides an attractive horizontal express joint.

  • The UV stable Façade System EPDM foam tape with self-adhesive backing.

Download the Siniat technical manual Blueprint for more information and construction details.

Further information

Applications:

  • The Siniat Metal Facade System was developed to provide an attractive express joint system for 9mm CFC boards.

Benefits:

  • Developed and designed for ease of installation in collaboration with contractors and other manufacturers
  • CSIRO tested with various configurations and plasterboard types
